ISO Single Track Read Only Heads
| ISO single track reader. |
|---|
| ISO 1 track reading. |
| Reader for magnetic cards. |
| Manual and auto card reader system terminals. |
| Customized head assembling : Magnetic head and spring. |
| Other custom electric specifications are available in this series. |

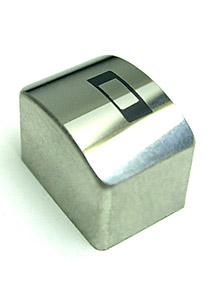

| PICTURES

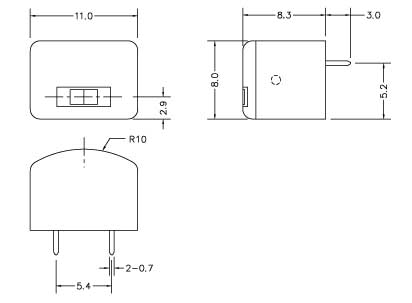

| PRODUCT | DIMENSIONS(mm) |
|---|---|
 |
 |
| SPECIFICATIONS
| ITEMS | CONDITIONS | MODELS | |||||||
| YII-611110 | YII-611110 | ||||||||
| Inductance | 1 KHz | R | 110 mH ±30% |
110 mH ±30% | |||||
| D.C resistance | R | 280 Ω ±30% |
280 Ω ±30% | ||||||
| Core track width | R | 1.50 mm | |||||||
| Permalloy cores | Standard min. | 500 k | |||||||
| Sendust cores | Standard min. | 1000 k | |||||||
| Insuation resistance | 10 ㏁ min. | ||||||||
| Size | 11.0×8.0x8.3 mm | ||||||||
