ISO ATB Write Heads
| ISO single track reader. |
|---|
| ISO 1 track reading. |
| Reader for magnetic cards. |
| Manual and auto card reader system terminals. |
| Customized head assembling : Magnetic head and spring. |
| Other custom electric specifications are available in this series. |
| PICTURES

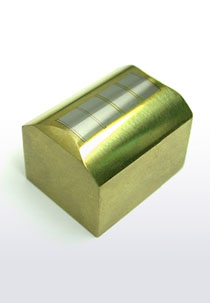

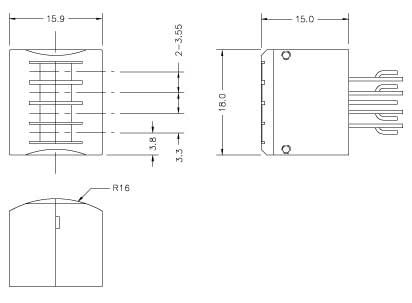

| PRODUCT | DIMENSIONS(mm) |
|---|---|
 |
 |
| SPECIFICATIONS
| ITEMS | CONDITIONS | MODELS | |||||||
| YII-614201 | |||||||||
| Inductance | 1 KHz | W | 2.0 mH ±30% |
||||||
| D.C resistance | W | 5.0 Ω ±25% |
|||||||
| Core track width | W | 3.0 mm | |||||||
| Sendust cores | Standard min. | 1000 k | |||||||
| Insuation resistance | 10 ㏁ min. | ||||||||
| Size | 15.9×18.0x15.0 mm | ||||||||
