Long-lasting_ISO ATB Read heads


ISO standard 4-track reader.
Automatic Ticket and Boarding pass system.
Reader for magnetic cards.
Customized head assembling : Magnetic head and spring.
Other custom electric specifications are available in this series.

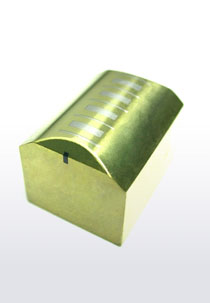

| PICTURES

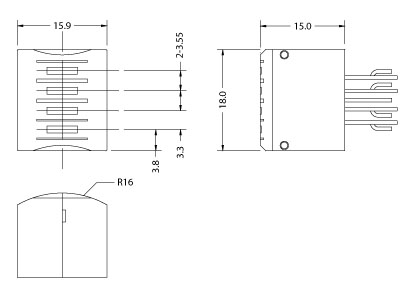

PRODUCT DIMENSIONS(mm)
ms_ATB-R ms_ATB-R

| SPECIFICATIONS

ITEMS CONDITIONS MODELS
YII-614101
Inductance 1 KHz R 50 mH ±30%
D.C resistance R 150 Ω ±25%
Core track width R 1.0 mm
Sendust cores Standard min. 1,000 k
Insuation resistance 10 ㏁ min.
Size 15.9×18.0x15.0 mm
