Long-lasting_ISO ATB read/write heads


ISO standard 4-track reader and writer.
Automatic Ticket and Boarding pass system.
Reader and writer for magnetic cards.
Customized head assembling : Magnetic head and spring.
Other custom electric specifications are available in this series.

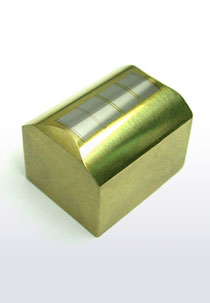

| PICTURES

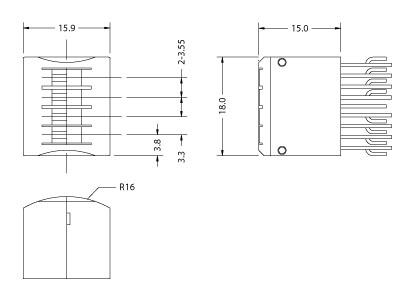

PRODUCT DIMENSIONS(mm)
ms_ATB-RW ms_ATB-RW

| SPECIFICATIONS

ITEMS CONDITIONS MODELS
YII-614301
Inductance 1 KHz R 90 mH ±30%
w 2.0 mH ±30%
D.C resistance R 150 Ω ±25%
w 5.0 Ω ±25%
Core track width R 1.0 mm
w 3.0 mm
Sendust cores Standard min. 1,000 k
Insuation resistance 10 ㏁ min.
Size 15.9×18.0x15.0 mm
