ISO triple track Read or Read/ Write heads
ISO standard triple track reader or reader and writer. |
---|
Reader and writer for magnetic cards. |
Bank and auto card reader system terminals. |
Customized head assembling : Magnetic head and spring. |
Other custom electric specifications are available in this series. |
| PICTURES

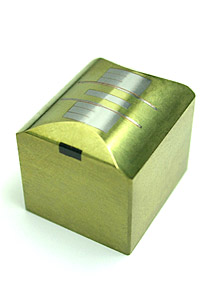

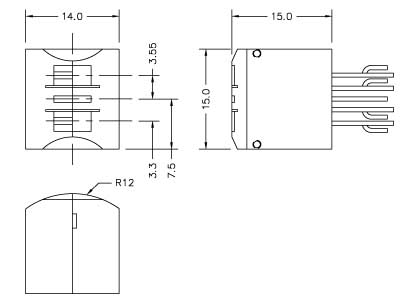

PRODUCT IMAGE | DIMENSIONS(mm) |
---|---|
![]() |
![]() |
| SPECIFICATIONS
ITEMS | CONDITIONS | MODELS | |
YII-611301 | |||
Inductance | 1 KHz | R1,R3 | 90 mH ±30% |
R2 | 50 mH ±30% | ||
W1,3 | 2.0 mH ±30% | ||
D.C resistance | Read | 150 Ω ±25% | |
Write | 5.0 Ω ±25% | ||
Core track width | Read | 1.0 mm | |
Write | 3.0 mm | ||
Life time | Standard min. | 1,000 k | |
Insuation resistance | D.C 500V | 10 ㏁ min. | |
Size | 14.0×15.0x15.0 mm |
| In using for these products
![]() |
![]() |
![]() |
![]() |
