ISO triple track Read/Write Heads
| ISO standard triple track Reader | Reader/Writer for Credit cards. |
|---|---|
| Reader and Writer modules for Credit cards. | |
| Bank terminal. | |
| Customized head assembling : Magnetic head and spring. | |
| Other custom electric specifications are available in this series. |

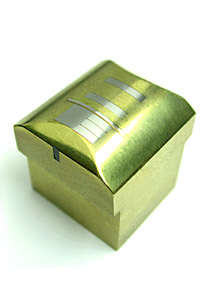

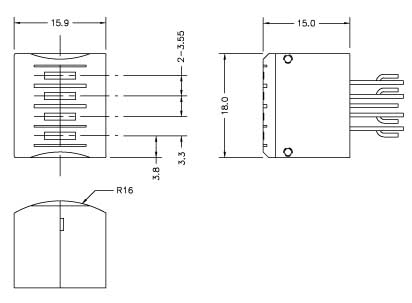

| PICTURES| PRODUCT IMAGE | DIMENSION(mm) |
|---|---|
 |
 |
| SPECIFICATIONS
| ITEMS | CONDITIONS | MODELS | |
| YII-613301 | |||
| Inductance | 1 KHz | R | 90 mH ±30% |
| w | 2.0 mH ±30% | ||
| D.C resistance | R | 150 Ω ±25% | |
| w | 5.0 Ω ±25% | ||
| Core track width | R | 1.0 mm | |
| w | 3.0 mm | ||
| Sendust cores | Standard min. | 1,000 k | |
| Insuation resistance | 10 ㏁ min. | ||
| Size | 14.0×15.0x15.0 mm | ||
