Drop In Circulator
| BeO free |
|---|
| Neodymium (NdFeB) free |
| Required RoHs compliance |
| High Power |
| Narrow Bandwidth |
| Other custom electric specifications are available in this series. |

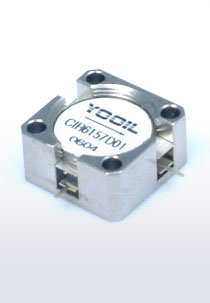

| PICTURES
| PRODUCT | DIMENSIONS(mm) |
|---|---|
 |
 |
| SPECIFICATIONS
| Type | Drop in | ||
| Frequency | 5.80 ~ 6.50 GHz | 6.40 ~ 7.20 GHz | 7.70 ~ 8.50 GHz |
| Insertion Loss | 0.5 dB max. | ||
| Isolation | 20dB min. | ||
| VSWR | 1.25 : 1 | ||
| Power | 10 W | ||
| Operating Temperature | -30 ~ 80 ℃ | ||
| Dimension | 12.7*12.7*5.5mm | ||
