Drop In Circulator
| BeO free |
|---|
| Neodymium (NdFeB) free |
| Required RoHs compliance |
| High Power |
| Narrow Bandwidth |
| Other custom electric specifications are available in this series. |
| PICTURES

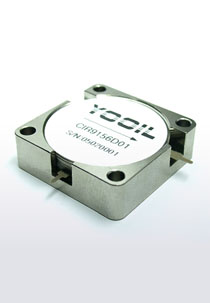

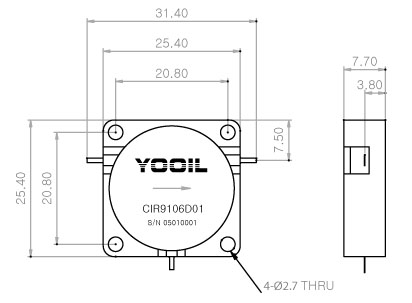

| PRODUCT | DIMENSIONS(mm) |
|---|---|
 |
 |
| SPECIFICATIONS
| Type | Drop in | |
| Frequency | 869 ~ 894 MHz | 935 ~ 960 MHz |
| Insertion Loss | 0.3 dB max. | |
| Isolation | 20 dB min. | |
| VSWR | 1.2 : 1 | |
| Power | 150 W | |
| Operating Temperature | -30 ~ 80 ℃ | |
| Dimension | 25.4*25.4*7.7 mm | |
| Drop in circulator
| 400MHz ~ 600MHz band |
|---|
| 800MHz ~ 1000MHz band |
| 1800MHz ~ 2000MHz band |
| 2100MHz ~ 3600MHz band |
| Microwave band |
| Drop in isolator
| 400MHz ~ 600MHz band |
|---|
| 800MHz ~ 1000MHz band |
| 1800MHz ~ 2000MHz band |
| 2100MHz ~ 3600MHz band |
| Microwave band |
| Drop in isolator with attenuator
| 800MHz ~ 1000MHz band |
|---|
| 2100MHz ~ 3600MHz band |
