Long-lasting_ISO sliced write/read heads(HiCo & LoCo)


20140325-ISO3A-HL-RW-도면

<Application>
Credit card writer/reader for both High and Low Coercivity(Hc 300 – 3300 Oe)
Bank systems              /                Magnetic card terminals.
<Key features>
Exreamly reliable data Read & Write performance for Credit cards.
Customized head assembly : Magnetic head + holder/spring + FPC/Cable
Customized electric specifications are available



| PICTURES

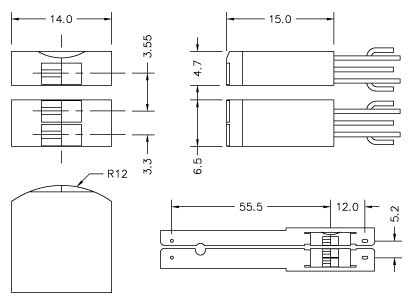

PROUCT IMAGE DIMENSIONS(mm)

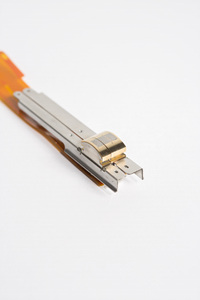

CQ4A1282 ISO R and W SLICE-RW

| SPECIFICATIONS

ITEMS CONDITIONS MODELS
YHI-613340(Rev. A)
Inductance 1 KHz Read 220 mH ± 25%
Write 1.0 mH ± 25%
D.C resistance Read 225 Ω ± 25%
Write 4.0 Ω ± 25%
Core track width Read 1.0 mm
Write 3.0 mm
Recording current High / Low Coercivity. 3,300 Oe=280 mAb-p / 330 Oe=40mAb-p
Read output High / Low Coercivity(350mm/sec) 1.2 Vp-p ± 20 % / 1.2 Vp-p ± 20 %
Life time Sendust cores 4,000 k
Insuation resistance D.C 500V 10 ㏁ min.
Size 14.0  x  4.7 / 6.5  x  15.0 mm



| PDF

SLICE-ISO3A-RW-SPEC
