Long-lasting_M.I.C.R Read heads


<Application>

The fastest  speed  (150 – 2,400  mm/sec.)

Very stable pulse shape & amplitude of  read output signals

Wide application for E13B and CMC7 fonts of Magnetic Ink Character.

<Key features>

Ultra long-life (Over  6 million  pass) : Ceramic cores

Customized head assembly available    :    Magnetic head + Holder/spring + FPC/shielded cable

Customized electric specifications are available

| PICTURES
PRODUCT IMAGE DIMENSIONS(mm)

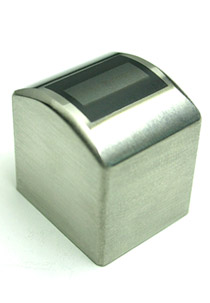

MICR-F ms_MICR

| SPECIFICATIONS

ITEMS CONDITIONS MODELS
YIM-611110 YIM-611120
Inductance 1 KHz R 20 mH ±30% 150 mH ±30%
D.C resistance R 50 Ω ±25% 450 Ω ±25%
Core track width R 8.0 mm
Life time Ceramic core. > 6 million pass  min.
Performance speed 400 ~ 2,400 mm/sec 50 ~ 400 mm/sec
Insuation resistance 10 ㏁ min.
Size 14.5×12.5×15.0 mm



| PDA

MICR-R-SPEC

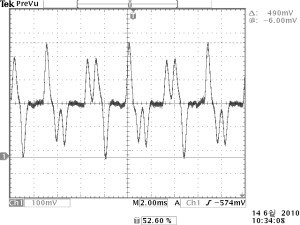

유일_수표-8

| In using  for these products
