Drop In Isolator


BeO free
Neodymium (NdFeB) free
Required RoHs compliance
High Power
Narrow Bandwidth
Other custom electric specifications are available in this series.

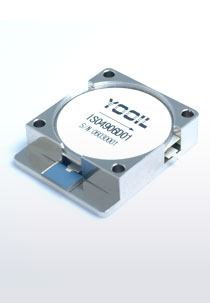

| PICTURES

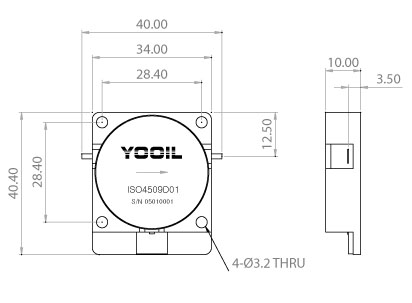

PRODUCT DIMENSIONS(mm)
rf_iso_400 ms_iso_400

| SPECIFICATIONS

Type Drop in
Frequency 465 ~ 515Mhz
Insertion Loss 0.5 dB max.
Isolation 23 dB min.
VSWR 1.2 : 1
Power 150 W
Operating Temperature -25 ~ 80 ℃
Dimension



| Drop in isolator

400MHz ~ 600MHz band
800MHz ~ 1000MHz band
1800MHz ~ 2000MHz band
2100MHz ~ 3600MHz band
Microwave band

| Drop in isolator with attenuator
800MHz ~ 1000MHz band
2100MHz ~ 3600MHz band
