Drop In Isolator


BeO free
Neodymium (NdFeB) free
Required RoHs compliance
High Power
Narrow Bandwidth
Other custom electric specifications are available in this series.

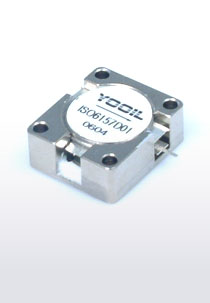

| PICTURES

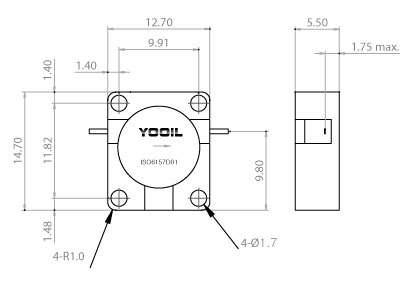

PRODUCT DIMENSIONS(mm)
rf_iso_5800_8500 ms_iso_5800_8500

| SPECIFICATIONS

Type Drop in
Frequency 5.80 ~ 6.50 GHz 6.40 ~ 7.20 GHz 7.70 ~ 8.50 GHz
Insertion Loss 0.5 dB max.
Isolation 20 dB min.
VSWR 1.2 : 1
Power 10 W
Operating Temperature -30 ~ 80 ℃
Dimension 12.7*12.7*5.5mm
