Long-lasting_ISO triple track Read heads


ISO standard triple track reader.
Reader for magnetic cards.
Manual and auto card reader system terminals.
Customized head assembling : Magnetic head and spring.
Other custom electric specifications are available in this series.

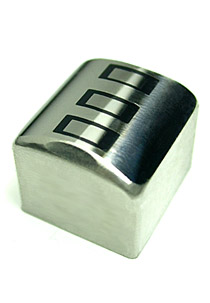

| PICTURES

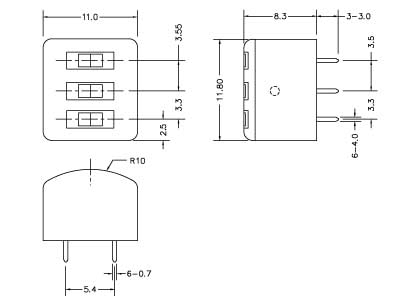

PRODUCT DIMENSIONS(mm)
ISO R or W TRIPLE-R ISO R or W TRIPLE-R

| SPECIFICATIONS

ITEMS CONDITIONS MODELS
YII-614101 YII-613111
Inductance 1 KHz R 110 mH ±30% 110 mH ±30%
D.C resistance R 280 Ω ±30% 280 Ω ±30%
Core track width R 1.50 mm
Permalloy cores Standard min. 500 k
Sendust cores Standard min. 1000 k
Insuation resistance 10 ㏁ min.
Size 15.9×18.0x15.0 mm
