ISO dual track Read heads
| ISO dual track reader. |
|---|
| ISO 1-2 track and 2-3 track reading. |
| Reader for magnetic cards. |
| Manual and auto card reader system terminals. |
| Customized head assembling : Magnetic head and spring. |
| Other custom electric specifications are available in this series. |
| PICTURES

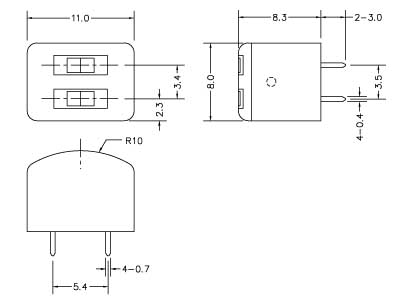

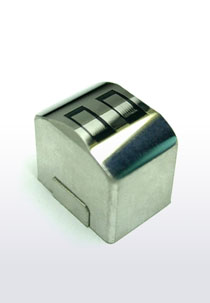

| PRODUCT IMAGE | DIMENSIONS(mm) |
|---|---|
 |
 |
| SPECIFICATIONS
| ITEMS | CONDITIONS | MODELS | ||
| YII-612110 | YII-612111 | |||
| Inductance | 1 KHz | R | 110 mH ±30% | 110 mH ±30% |
| D.C resistance | R | 280 Ω ±30% | 280 Ω ±30% | |
| Core track width | R | 1.50 mm | ||
| Permalloy cores | Standard min. | 500 k | ||
| Sendust cores | Standard min. | 1000 k | ||
| Insuation resistance | 10 ㏁ min. | |||
| Size | 11.0×8.0x8.3 mm | |||
