Long-lasting_Passbook Read/Write heads
| JIS II standard single track reader and writer. |
|---|
| Reader and writer for magnetic cards. |
| Bank passbook and other auto card system terminals. |
| Customized head assembling : Magnetic head and spring. |
| Other custom electric specifications are available in this series. |
| PICTURES

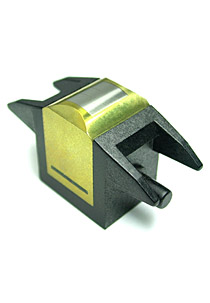

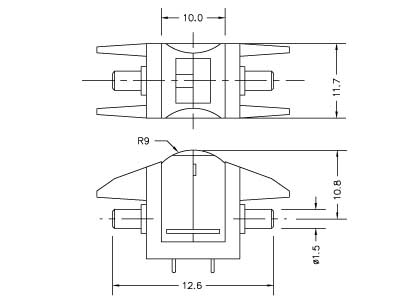

| PRODUCT IMAGE | DIMENSIONS(mm) |
|---|---|
 |
 |
| SPECIFICATIONS
| ITEMS | CONDITIONS | MODELS | |
| YIJ-611304 | |||
| Inductance | 1 KHz | R | 180 mH ±30% |
| W | 9.0 mH ±30% | ||
| D.C resistance | R | 280 Ω ±25% | |
| W | 16.0 Ω ±25% | ||
| Core track width | R | 2.0 mm | |
| W | 7.0 mm | ||
| Sendust cores | Standard min. | 1,000 k | |
| Insuation resistance | 10 ㏁ min. | ||
| Size | 15.0×11.7×15.0 mm | ||
| In Use This Products
 |
