Subway Read, Write heads
| Single track reader and writer. |
|---|
| Reader and writer for magnetic tickets. |
| Transportation (A.F.C) system. |
| A.T.B(Automatic Ticket and Boarding) system. |
| PICTURES

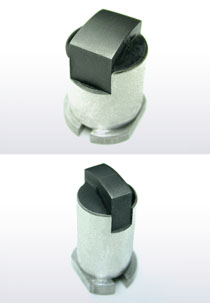

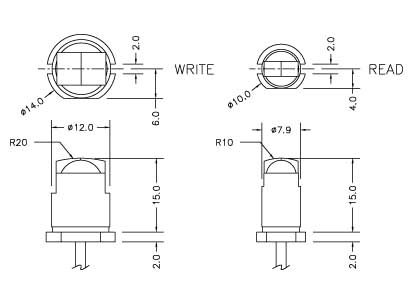

| PRODUCT IMAGE | DIMENSIONS(mm) |
|---|---|
 |
 |
| SPECIFICATIONS
| ITEMS | CONDITIONS | MODELS | ||
| YIO-611201 | YIO-611101 | |||
| Inductance | 1 KHz | W | 15 mH ±30% | |
| R | 550 mH ±30% | |||
| D.C resistance | W | 6.5 Ω ±30% | ||
| R | 180 Ω ±30% | |||
| Core track width | W | 6.5 mm | ||
| R | 3.0 mm | |||
| Sendust cores | Standard min. | W | 1,000 k | |
| Ferrite core | Standard min. | R | 500 k | |
| Insuation resistance | 10 ㏁ min. | |||
| Size | Φ14.0×17.0 mm | Φ10.0×17.0 mm | ||
| In Use This Products
 |
 |
