Payphone Read or Read/Write heads
| Dual track reader or writer. |
|---|
| Reader and writer for magnetic cards. |
| Payphones and prepaid card system. |
| PICTURES

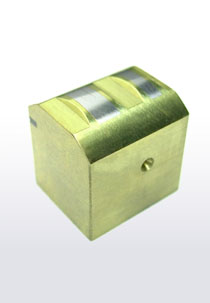

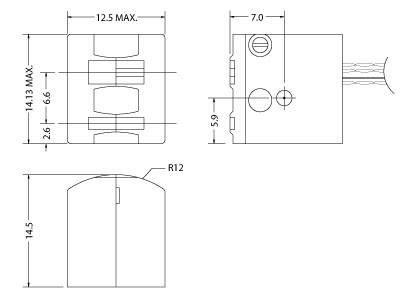

| PRODUCT | DIMENSIONS(mm) |
|---|---|
 |
 |
| SPECIFICATIONS
| ITEMS | CONDITIONS | MODELS | |
| YIO-612401 | |||
| Inductance | 1 KHz | R1 | 5 mH ±30% |
| R2 | 270 mH ±30% | ||
| W1 | 20 mH ±30% | ||
| D.C resistance | R1 | 50 Ω Max. | |
| R2 | 220 Ω ±25% | ||
| W2 | 60 Ω ±25% | ||
| Core track width | R1 | 1.5 mm | |
| R2 | 1.0 mm | ||
| W2 | 3.0 mm | ||
| Permalloy cores | Standard min. | 500 k | |
| Insuation resistance | 10 ㏁ min. | ||
| Size | 12.5×14.1×14.5 mm | ||
