Subway read, write heads
| Single track reader and writer. |
|---|
| Reader and writer for magnetic tickets. |
| Transportation (A.F.C) system. |

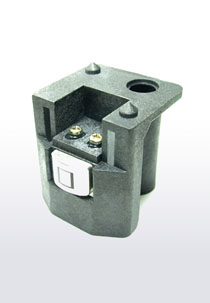

| PICTURES

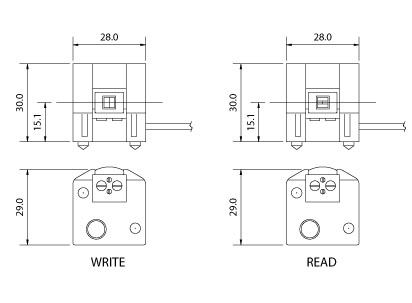

| PRODUCT | DIMENSIONS(mm) |
|---|---|
 |
 |
| SPECIFICATIONS
| ITEMS | CONDITIONS | MODELS | ||
| YIO-611270 | YIO-611170 | |||
| Inductance | 1 KHz | W | 0.5 mH ±30% | |
| R | 50 mH ±30% | |||
| D.C resistance | W | 1.3 Ω ±30% | ||
| R | 330 Ω ±30% | |||
| Core track width | W | 4.0 mm | ||
| R | 1.0 mm | |||
| Sendust cores | Standard min. | 1,000 k | ||
| Insuation resistance | 10 ㏁ min. | |||
| Size | 28.0×30.0x29.0 mm | |||
| In Use This Products
 |
 |
