Long-lasting _ Passbook single track Write/Read heads


<Applications>
Bank passbook (JIS II) wrter/reader for HiCo & LoCo  strpe  (Hc 300 – 3300  Oe)
Passbook terminals  /  Banking systems
<Key features>
Customized head assembly  : Magnetic head + holder/spring + FPC/Cable
Customized  electric specifications are available

| PICTURES

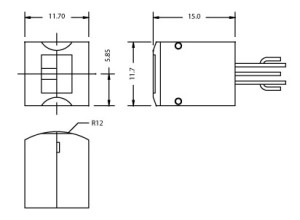

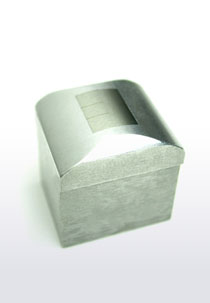

PRODUCT IMAGE DIMENSIONS(mm)
ms_JIS2-RW ms_JIS2-RW

| SPECIFICATIONS

ITEMS CONDITIONS MODELS
YIJ-611301
Inductance 1 KHz R 180 mH ±30%
W 9.0 mH ±30%
D.C resistance R 280 Ω ±25%
W 16.0 Ω ±25%
Core track width R 2.0 mm
W 7.0 mm
Life time Sendust cores 4,000 k
Insuation resistance 10 ㏁ min.
Size 11.7×11.7×15.0 mm
