Long-lasting_Passbook Read/Write heads


JIS II standard single track reader and writer.
Reader and writer for magnetic cards.
Bank passbook and other auto card system terminals.
Customized head assembling : Magnetic head and spring.
Other custom electric specifications are available in this series.

| PICTURES

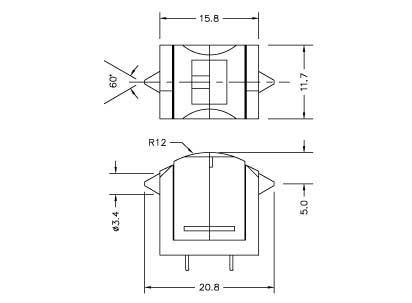

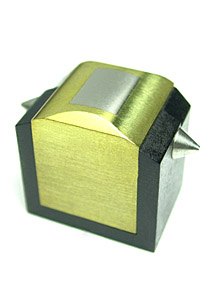

PRODUCT IMAGE DIMENSIONS(mm)
JIS-LPRW JIS-LPRW

| SPECIFICATIONS

ITEMS CONDITIONS MODELS
YIJ-611303
Inductance 1 KHz R 65 mH ±30%
W 10 mH ±30%
D.C resistance R 55 Ω ±25%
W 15 Ω ±25%
Core track width R 2.0 mm
W 7.0 mm
Sendust cores Standard min. 1,000 k
Insuation resistance 10 ㏁ min.
Size 20.8×11.7×16.4 mm
