ISO single track Read heads


ISO single track reader.
Reader for magnetic cards.
Manual and auto card reader system terminals.
Customized head assembling : Magnetic head + spring.
Other custom electric specifications are available in this series.

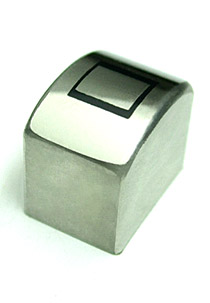

| PICTURES

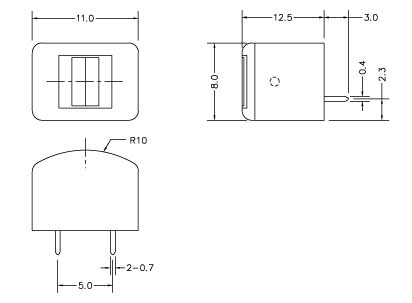

PRODUCT DIMENSIONS(mm)
ISO R or W SINGLE-4R ISO R or W SINGLE-4R

| SPECIFICATIONS

ITEMS CONDITIONS MODELS
YIO-611110
Inductance 1 KHz R 450 mH ±30%
D.C resistance R 400 Ω ±30%
Core track width R 4.0 mm
Permalloy cores Standard min. 500 k
Insuation resistance 10 ㏁ min.
Size 11.0×8.0x12.5 mm
