Long-lasting_ISO single track Read/Write heads


ISO single track Reader & Writer for Credit cards.
Bank terminals and Systems for using  magnetic stripes.
Customized head assembly available  :  Magnetic head + holder/spring + cable/fpc.
Variable electric specifications are available in this series.

| PICTURES

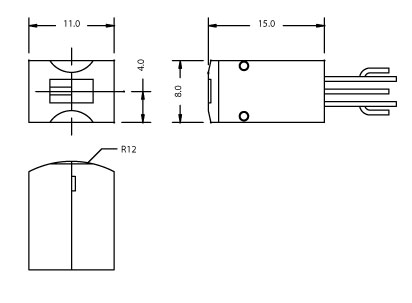

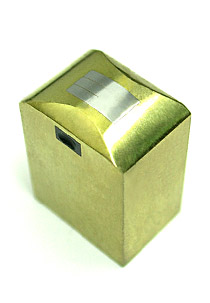

PRODUCT IMAGE DIMENSIONS(mm)
ISO R and W SINGLE-RW1 ms_SINGLE-RW

| SPECIFICATIONS

ITEMS CONDITIONS MODELS
YII-611301
Inductance 1 KHz Read 90 mH ±30%
Write 2.0 mH ±30%
D.C resistance Read 150 Ω ±25%
Write 5.0 Ω ±25%
Core track width Read 1.0 mm
Write 3.0 mm
Life time Sendust cores. 4,000 k  passes
Insuation resistance D.C 500V 10 ㏁ min.
Size 11.0×8.0x15.0 mm
