Long-lasting_ISO sliced Read, Write/Read heads


ISO standard dual track reader or single track reader.
Reader and writer for magnetic cards.
Bank and auto card reader system terminals.
Customized head assembling : Magnetic head and spring.
Other custom electric specifications are available in this series.

| PICTURES

PRODUCT IMAGE DIMENSIONS(mm)

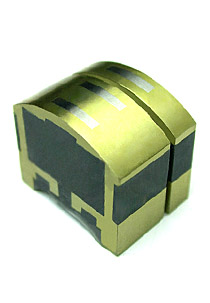

ISO R or W SLICE-R

| SPECIFICATIONS

ITEMS CONDITIONS MODELS
YII-612150 YII-611150
Inductance 1 KHz R 50 mH ±30%
W 2.0 mH ±30%
D.C resistance R 150 Ω ±25%
W 5.0 Ω ±25%
Core track width R 1.0 mm
W 3.0 mm
Sendust cores Standard min. 1,000 k
Insuation resistance 10 ㏁ min.
Size 14.0×6.5×15.0 mm 14.0×4.7×15.0 mm
