Long-lasting_Passbook single track Write/Read heads
| <Applications> |
|---|
| Bank passbook wrter/reader for HiCo & LoCo strpe (Hc 300 – 3300 Oe) |
| Passbook terminals / Banking systems |
| <Key features> |
| Customized head assembly available : Magnetic head + holder/spring + FPC/Cable |
| Customized electric specifications are available |
| PICTURES

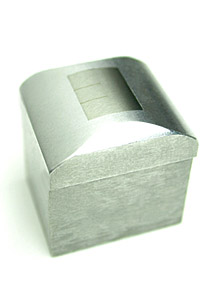

| PRODUCT IMAGE | DIMENSIONS(mm) | ||
|---|---|---|---|
 |
 |
||
 |
 |
| SPECIFICATIONS
| ITEMS | CONDITIONS | MODELS | |
| YIJ-611340 | |||
| Inductance | 1 KHz @1.0Vp-p | R | 100 mH ± 25% |
| W | 1.5 mH ± 25% | ||
| D.C resistance | R | 165 Ω ± 25% | |
| W | 4.0 Ω ± 25% | ||
| Core track width | R | 2.0 mm | |
| W | 7.0 mm | ||
| Life time | Sendust cores | 4,000 k | |
| Recording current | High/Low corecivity | 3,300 Oe = 300 mAb-p / 600 Oe = 60 mAb-p | |
| Read output | HiCo / LoCo ( mm/sec.) | Vp-p ± 20% / Vp-p ± 20% | |
| Insuation resistance | 10 ㏁ min. | ||
| Size | 12.0 x 9.0 x 10.0 mm | ||
